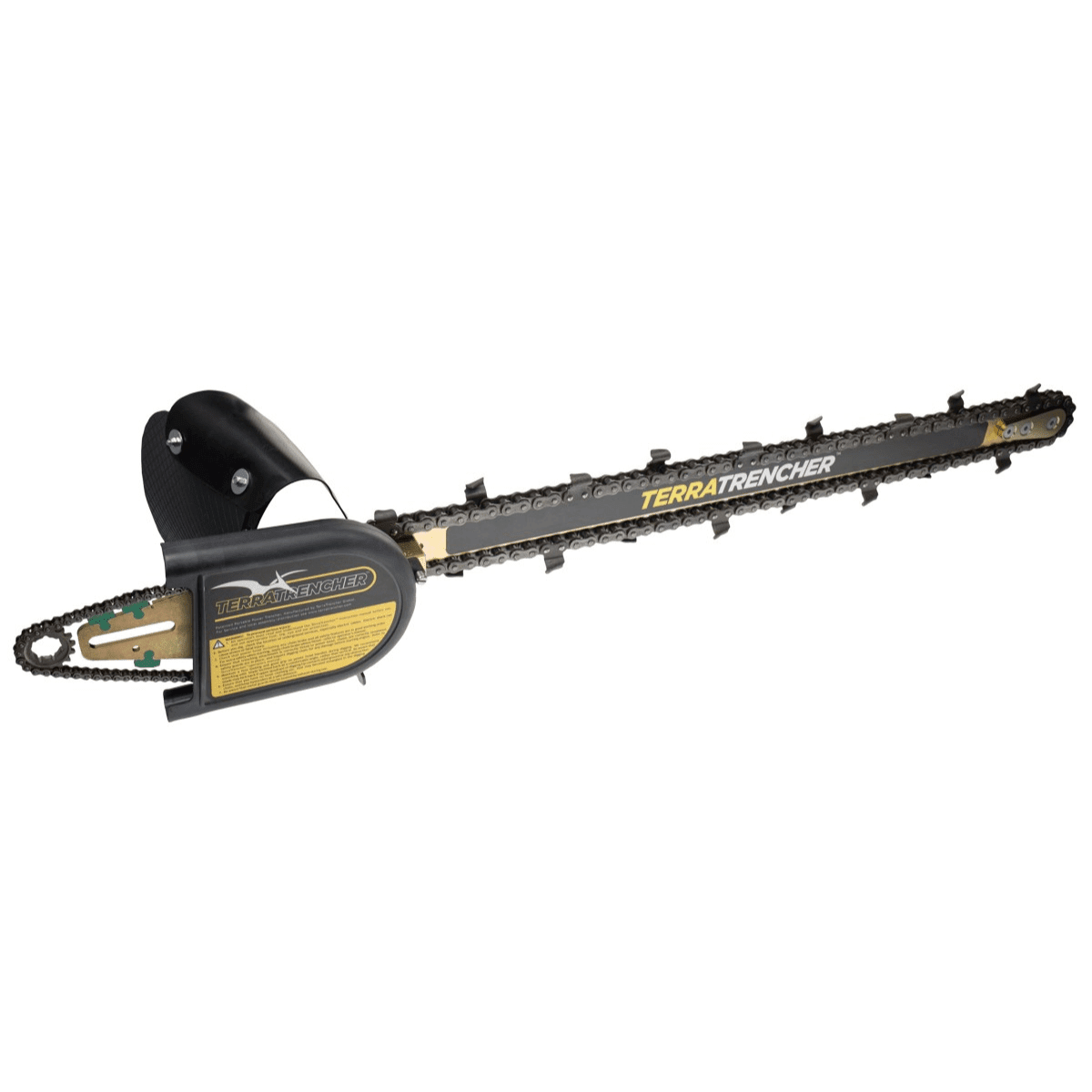

TerraTrencher TT 800 Conversion Kit (Suits Stihl MS 500I & MS661)

• The TT 800 TerraTrencher cuts a clean trench 38-40mm wide and digs up to 670mm deep
• Components are industrial grade, it handles soil with aggregate up to the size of the trench.
• Digging speed at full depth is close to a metre per minute in most soil types.
• Safety chain brake and anti-vibration features are retained.
• Wider trenches can be easily achieved using the twin trench method.
• Soil is dispersed on approx. a 70 – 30 ratio each side of the trench.
• The digging chain has self-sharpening teeth that will cut through tree roots up to 30mm (1 inch) dia.
• When anything solid in the ground is struck, an experienced operator will feel a bounce, rise over it and continue trenching. A hand pick is then used to remove the obstruction.
• The drive chain, either spray wax or oil lubricated, runs via a transfer case to the main digging chain.
• The digging bar and chain is centred for ease of balance when digging a trench.
• The digging bar sprockets have dirt ejectors to keep the digging chain running smoothly.

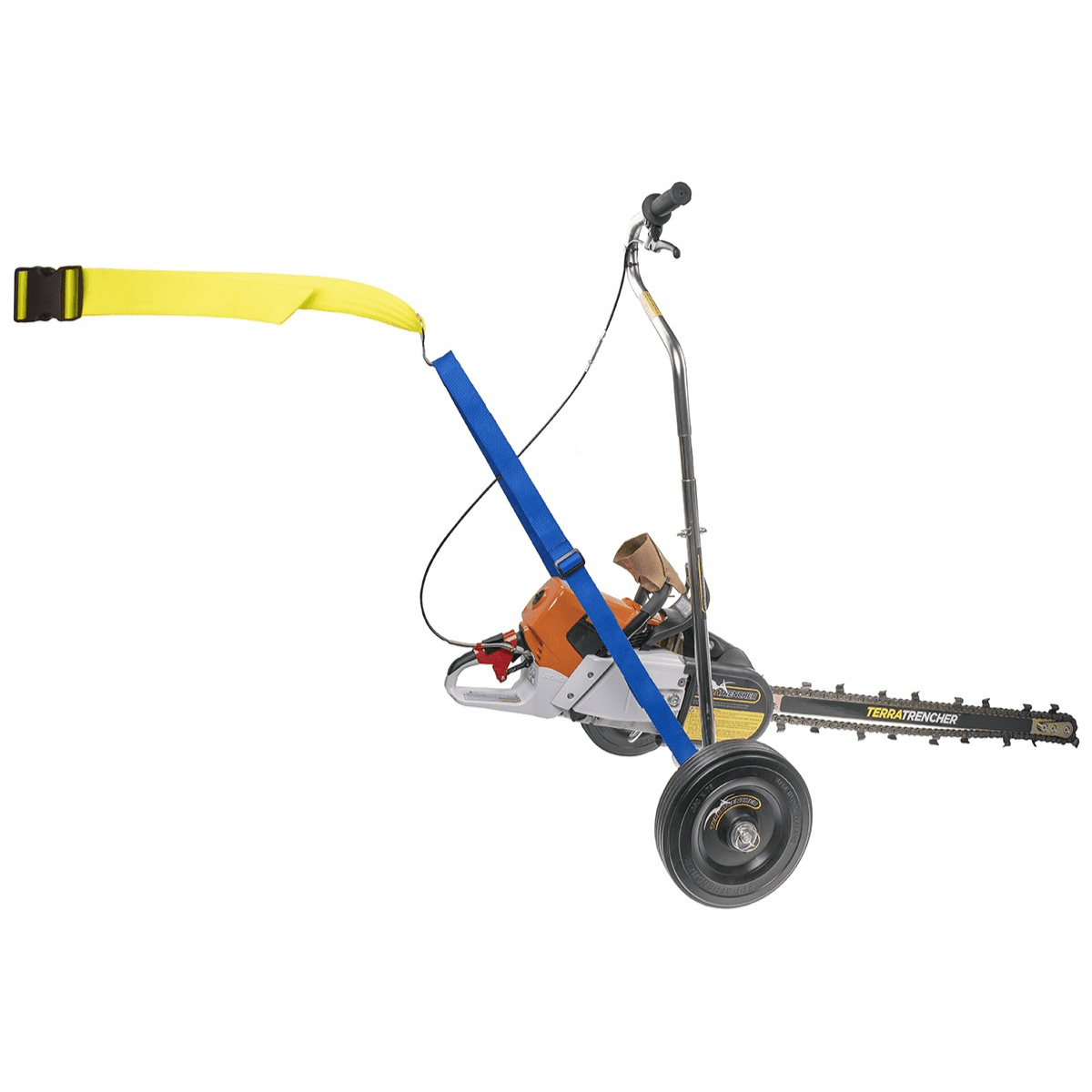

• The Wheel Support (optional extra) with remote throttle control makes digging long trenches easy and controls the depth to an even standard.
• The trencher can be operated by hand for short runs (e.g. when trenching around curves or close to buildings) or in the Wheel Support for longer runs.
• A “Chipper”pattern chain is supplied. Alternate “Gravel”pattern, carbide toughened and other specialised chain options are available on request. (Use of these is covered in the manual).
• The TT 800 version easily digs to approx. 670mm (26 inches) deep, 38-40mm (1 ½inches) wide, and is favoured by electrical conduit installers and tree transplanters. The TT 800 attachment weighs 9.1kg (20 lb.)

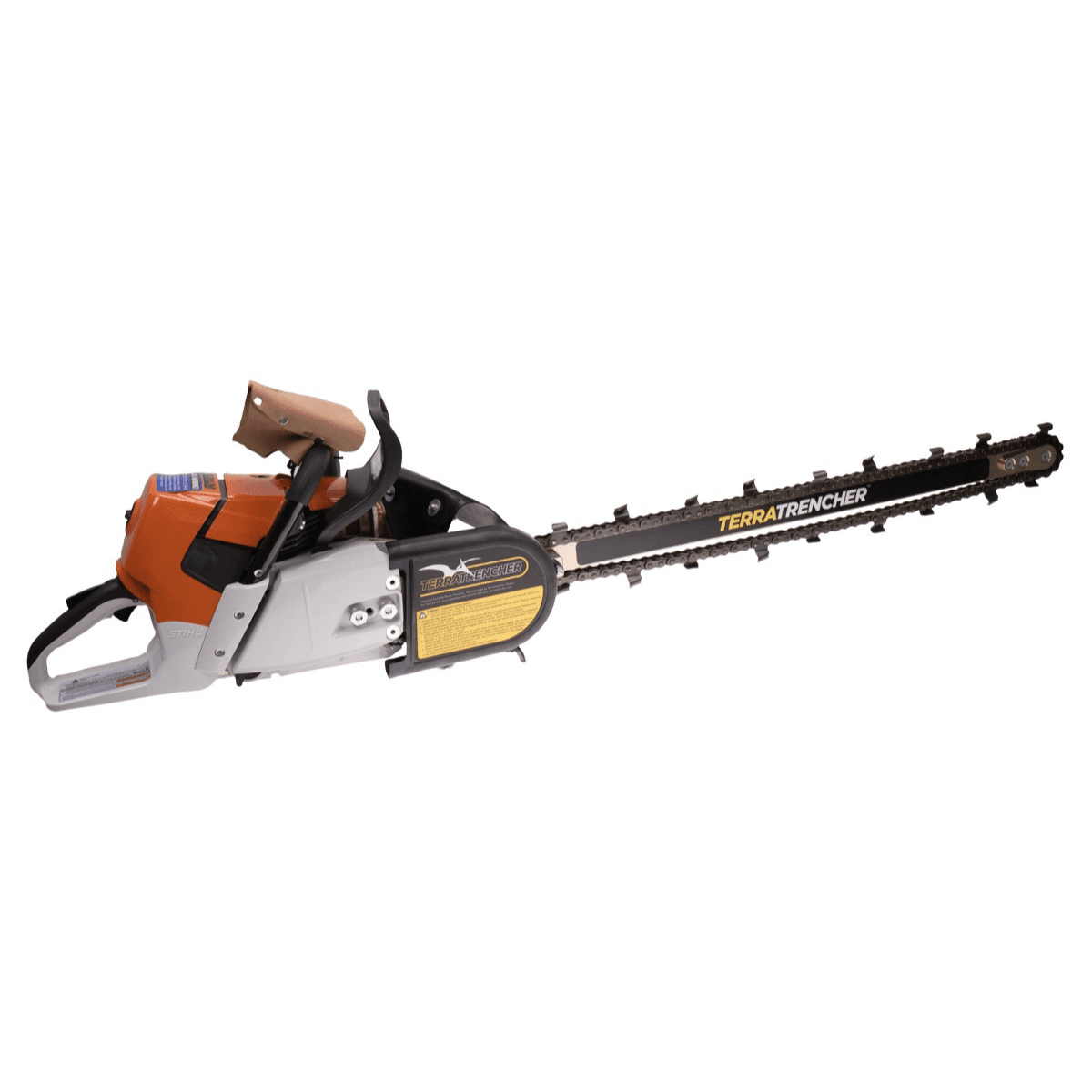

• To drive these units we specify powerheads the Stihl MS 500I  or MS  661.These are from the Stihl Professional range, selected to deliver the required torque and power. They also have superior air filtration, which we further enhance with our custom filter kits. The intended use, the typical digging conditions and the TT model chosen will determine which powerhead we recommend for optimum performance.
• The Trencher is fully serviceable. At our workshop, we stock most high moving parts and have access to all the parts and accessories you may need.

TT 800 Conversion Kit Includes:

• 1 x TerraTrencher Owner’s Manual
• 1 x Fine dust oilable foam filter kit
• 1 x Long bar spanner
• 1 x Chipper pattern digging chain
• 1 x Gravel pattern digging chain
• 1 x Digging chain safety scabbard
• 1 x Spare nose bearing, and 3 x Spare shear bolts
